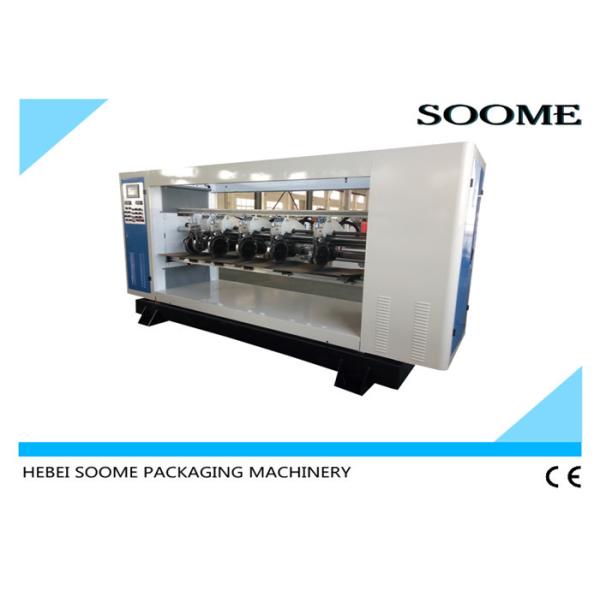

Soome Online Lifting Type Thin Blade Slitter Scorer For 1800mm Corrugated Production Line Double Frequency Inverter
I. General introduction
Thin blade slitter scorer has two main types: one is online slitter scorer can match with corrugated production line; another is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.
And for the blades and scorers quantity, can make as customer line working width. Blades and scorers also has manual adjustment and electrical adjustment. This model has dual frequency inverter and electrical blades movement. Lifting type for match with different paper height.
Customer can offer the requirements, as factory, we do the suitable machine for you.
II. Function and features
1. Taiwan Delta colorful touch screen, simple operation.
2. The control system is composed of high performance Taiwan Delta PLC and dual frequency converter, energy saving, stable and reliable.
3. Keep the synchronous speed with the production line automatically.
4. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr. Blades adjusted by electric.
5. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.
6. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet. Optional: scorers adjusted by electric.
7. Adopt China famous brand or imported electric elements, reliable performance.
8. Electric left-right rectification function to cooperate the position of paper sheet.
III. Technical parameters
| Type | SMBD-GPPX-1800 | SMBD-GPPX-2000 | SMBD-GPPX-2200 | SMBD-GPPX-2500 |
| Effective width | 1800mm | 2000mm | 2200mm | 2500mm |
| Speed | 130m/min | 130m/min | 130m/min | 130m/min |
| Blade configuration | 4-6 blades | 4-6 blades | 4-6 blades | 4-8 blades |
| Press line wheel | 6-10 lines | 6-10 lines | 6-10 lines | 6-14 lines |
| Min. slitting width | 130mm | 130mm | 130mm | 130mm |
| Min. indentation width | 30mm | 30mm | 30mm | 30mm |
| Correction scope | 200mm | 200mm | 200mm | 200mm |
| Machine size(mm) | 3020x1250x1900 | 3220x1250x1900 | 3420x1250x1900 | 3720x1250x1900 |
IV. FAQ
1. Where is your factory located?
A: Our factory is in Dongguang county, Cangzhou city, Hebei, China.
2. Will you attend Corrugated Packaging Exhibition?
A: Yes, we attend the Sinco Corrugated Expro every year. One year in Shanghai and next year in Dongguan, Guangdong province.
3. Can customer visit SOOME factory?
A: Yes, welcome to visit our factory anytime. Can contact us before your coming.
