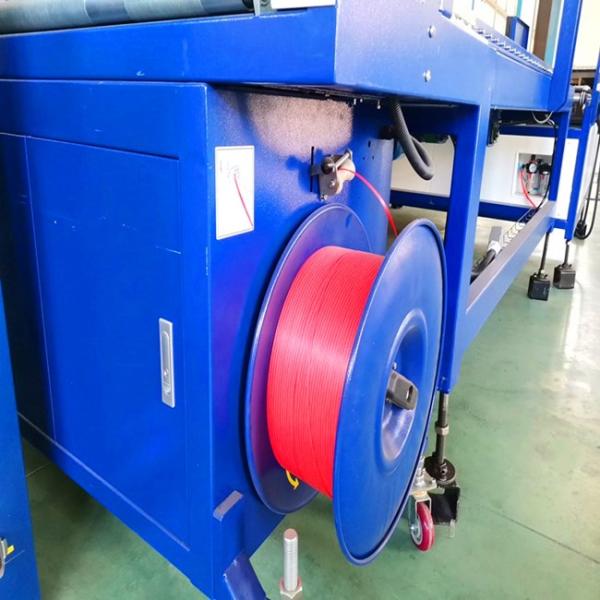

5mm Belt Strapper Corrugated Carton Automatic Packaging Machine
Machine specification:
1. Current:380V/50Hz power:3KW/5A
2. workstation height:800--900mm
3. speed of strapping machine:≤1.5s/piece
4. speed of hole machine:11 cases per minute( 1 meter in length, width of 500 mm packaging)
5. Air pressure:6kg/cm²
6. Packing size:max:L1400*W1450*H450,min:L500*W400*H60
7. Bundle of tension:0-85kg
8. Strapping form:1 ~ 2 parallel way, way with photoelectric control, manual, etc.
9. The table roller conveyor, can be directly when don't need to pack
10. Pack requirements: 5(±0.1)mm wide, thick 0.45-0.8(±0.1)mm
11. At the bottom of the adhesive, adhesive surface 90% or higher, adhesive width 10 mm, or bonding position deviation of 1 mm or less
Introduction:
the goods can be rotated 90 degrees in the machine
Control system: adopting Siemens PLC control, has manual and automatic operation mode, all the work steps are sensor detection, with functions of self-diagnosis, when there is any error occurs, equipment automatic stop and alarm lamp shining, display an error on the operation panel type hint;Conventional gear motor equipped with frequency converter, stepless speed regulation, run a smooth transition;According to the change of upper case, automatically control the speed of the machine
The safe operation of the equipment conform to the safe operation and related specifications and standards.All lubrication part access centralized location, convenient operation, lubrication part have protection to ensure the product free from contamination
