SMBD-SDJ 80m/Min On Line Carton Production Line Slitter Scorer Machine
1. Product overview:
SMBD-SDJ On line slitter scorer machine, The more shafts thin blade slitter scorer adopt two shafts in front and back of the slitter, can minimize the length of paperboard, is suitable to the common paper and the small baffle paper. Electrical adjustment of the blades work width, automatic locking, improved the working efficiency. Automatic grinding, tungsten blade control, synchronous belts drive, can quickly change orders by using two machine at the same time, 5 points scorer, good sharping effect.
2. Technical index:
| Model | 1600 | 1800 | 2200 |
| Efficient width | 1650mm | 1850mm | 2250mm |
| Min. slitting width | 120mm |
| Min. creasing width | 30mm |
| Blade model | Φ200*122*1.3mm |
| Creasing roller model | (up)φ152mm(down)φ152mm |
| Correction range | ±200mm |
| QTY of blade/scorer | 4/6 | 5/8 | 6/10 |
| Depth of creasing | 0-12mm |
| Design speed | 80 m/min |
3. Main configuration:
2. Suitable to the long paper slitting creasing.
3. Manual adjustment of the slitting blade work width.
4. Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
5. Adopt eight rolls, two roll-rang feeding, then scoring ,easy to adjust. It can do slitting only without scoring, avoid error conveying when scoring later. Can choose automatic or manual sharpening of blade.
Company profile:
Dongguang Soome Packaging Machinery is one of the professional manufacturer of corrugated carton machinery in north of China with nearly 20 years production experience.
We are specialized in developing and producing thin blade slitter scorer and cutting machines for corrugated cardboard, provide the whole dry-end solution of production line. And we also manufacture carton production line, which is composed of hydraulic mill roll stand, pre-heater, high speed single facer corrugation machine, gluer, double facer, N.C slitter scorer machine, N. C cut-off machine, stacker as well as flexo printing slotting and die cutting machine, rotary die cutting machine, folder gluer machine, laminator, etc.
We also have the patent and our special thin blades for Slitter Scorer and other high quality accessories for cutting, folding gluing, stapling, printing slotting die cutting machine and laminating and stacking machines, etc.
The enthusiasm on cooperating with clients all over the world made us develop high quality machinery with reasonable price for you. We are always providing our best service after sales to get the long term cooperation with customer.
Expect to work with you in the near future!
Product Tags:
|
|

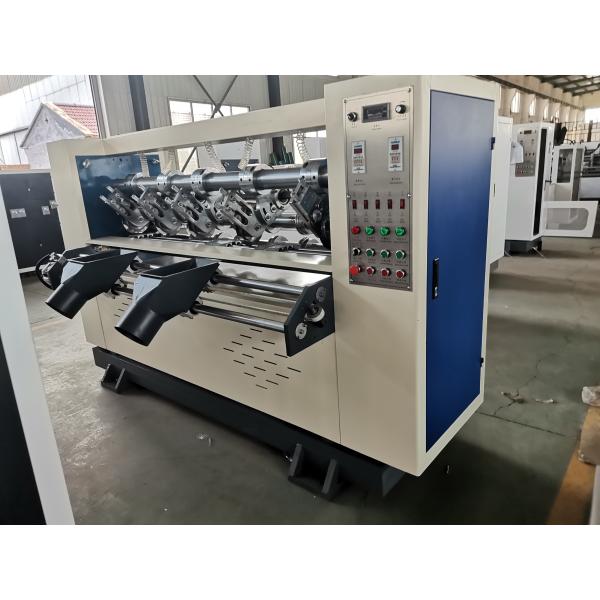

80m/Min On Line Carton Production Line Slitter Scorer Machine Images
|
